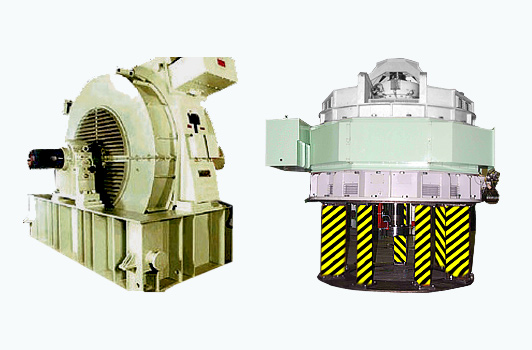

Synchronous Generators - HV
We offer salient pole and cylindrical pole generators, which are custom built and find applications in various industries like steel, cement, fertilizer, chemical, textile, float glass, etc. for captive power generation using, steam, gas and hydro turbines.
| RATING | VOLTAGE | FRAME | STANDARD |
| Up to 25MVA | Up to 13.8 kV | Up to 1250 | IEC |
- Brush less Excitation
- Heavy Damper Circuit for swift response to fluctuations
- Low Harmonics
- Built in Auxiliary Winding for AVR
- Rotating Rectifier and Fused Diodes for short circuit protection
- High Energy Surge Suppressor
- High Efficiency with lower stray losses and pole surface losses
- Large lubricant reservoir for extended bearing life
- Class F Insulation scheme with Vacuum Pressure Impregnation (VPI) System
- Higher Frequeny Generators up to 400 Hz
- Value added features and accessories on request
PRODUCT SPECIFICATIONS RANGE Supply Voltage Up to 15,000 V Output 1 MVA to 25MVA Frequency 50 Hz and 60 Hz Number of Poles 2 Pole to 30 Pole Type Salient Pole / Cylindrical rotor Enclosure SPDP / CACA / CACW Cooling IC01A1, IC6A1A1, IC8A1W7 Degree of Protection IP23, IP55, Mounting Horizontal foot mounted / Vertical Drives Diesel Engine, Hydro, Steam, Gas Turbine Standards Specification IEC60034 - 1, IS 4722 Degree of protection IEC60034 - 5, IS 4691 Cooling IEC60034 - 6, IS 6362 Construction & mounting IEC60034 - 7, IS 2253 Noise level IEC60034 - 9, IS 12065 Vibration IEC60034 - 14, IS 12075 Testing IEC60034 - 1, IS 4722 Quality Management System ISO 9001-2004
- Isolated operations for base load, standby, emergence load, etc.
- Parallel operations with other generators
- Parallel operations with grid
- Diesel Engine Test Plant / Transformer Test Plant / MG Set
- Steam / Gas / Hydro Turbine
- Rotating Electrical Machine Test Plants
