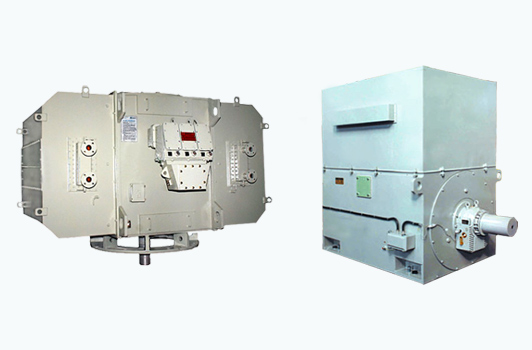

Water Cooled Induction Motors - IC 8A1W7 (CACW)
CG offers CACW Motors which include UW and FR Series High Voltage Induction Motors.
The UW range of induction motors includes both the Squirrel Cage (i.e. UWC) and the Slip Ring (i.e. UWR) type motors. These motors have totally enclosed construction. The UWC range consist of foot mounted (IMB3) machines which conforms to IS: 2253 / IEC: 60034-7. These motors are totally enclosed with IP55 protection as per IS: 4691 / IEC: 60034-5 and self cooled with air to water IC: 8AIW7- IEC: 60034-6 heat exchangers. The VUWC range is a variant of the UWC range with IMV1 flange mounted construction complying with IEC 60034-5.
The UWR range of induction motors is the Slip Ring motor design. The UW range of motors has been designed to meet diversified application demands, while maintaining excellent performance and highest quality.
The FR range of induction motor includes the FRC/FRCV type Squirrel Cage motor and the FRA/FRAV type Slip Ring motors. The FRC/FRA type is horizontal and foot mounted (IM B3, IEC60034-7) machines, whereas FRCV/FRAV type is vertical and flange mounted (IM V1, IEC 60034-7).These motors are totally enclosed (IP 54, IEC 60034-5), self cooled with air-to-water heat exchanger (IC 81 W7, IEC 34-6).
- Higher power to weight ratio
- Robust steel frame
- Spider type shaft
- Double ended radial ventilation
- Solid deep rotor bars in single cage
- Special double cage as per drive
- End-shield mounted bearings
- Antifriction/sleeve bearings
- Dynamically balanced rotors
- Highly reliable class 'F' insulation with class 'B' temp rise
- Ease of maintenance
- Space heaters
- On-line greasing for bearings
Shaft height IMB3 355 - 1400 mm Type of mounting IMB3, IMV1 Frame construction Fabricated Steel Standards IEC 60034 / IS / 325 Degree of protection IP55 as per IS 4691 Frame size IMV1 740 - 2500 Cooling IC8A1W7 SCR (Squirrel cage rotor) / SR (Slip Ring Motor) Insulation Class H, F with VPI Enclosures IP55
Quality work is based on a quality policy that focuses on customer satisfaction, employees commitment and constant improvement. The quality system has been designed to meet the customer’s expectations and demands. The quality system shall also support and facilitate our activities in pursuing a serious and long-term customer cooperation. We have chosen to adapt the system to follow the internationally recognized standard ISO 9001 : 2000 and ISO 14001 : 2004. The enterprise has a quality management system that complies with the international standard.
