Cast Iron enclosure motors
Low Voltage Motorsa

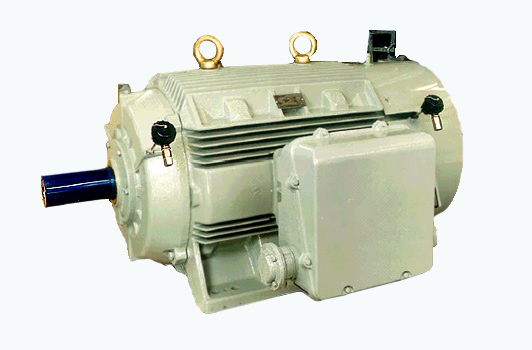

Cast Iron enclosure motors
CG is making these specific motors for North American Markets. These motors comply with NEMA standards such as NEMA MG 1 CSA C 22.2 No. 100 and UL 1004.
These motors are most energy efficient and meet Epact efficiency standards. These motors are also listed in DOE and ESA.
- Energy efficient as per EPACT 92 motors are tested in CSA Approved test plant as per CSA 390
- Online greasing arrangement
- Motors are suitable for Inverter duty MG 1 Part 31 , Motors can be operated with VFD for constant torque at speed ratio 5 : 1 & for variable torque speed range 10:1.
Range
1 Hp to 250 Hp
Frame
56 to 504 T in Cast Iron
Mounting
Foot/Flange/Face
Pole
2 to 8 Other on request
Service Factor
1.15
Frequency
60 Hz
Ambient
-20 to 40° C other on request
Protection
IP 55 other on request
Feature
CSA,CE approved
