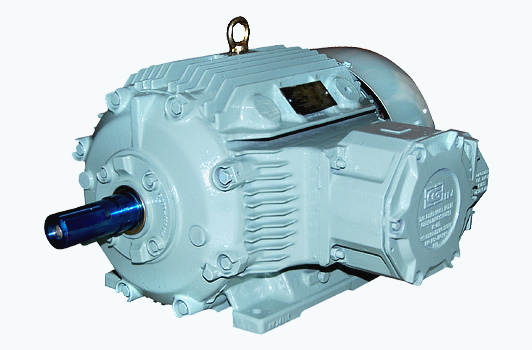

Flame Proof Motors Ex 'd' (LV)
_24084749_(1).jpg)
Motors for Hazardous Area (LV)
Flame Proof Motors Ex 'd' (LV)
CG offers wide range of low voltage Flameproof Squirrel Cage & Slip Ring electric motors for operation in hazardous and hostile environments, ranging from 0.37 kW to 355 kW. These Flameproof Motors are licensed by a European notified body (BASEEFA) and Indian notified body (ERTL/DGMS/DGFAS&LI).All relevant products fully comply with the requirements of the ATEX & CE Directives.
We also offer a complete range of Squirrel Cage Motors for Gas Group IIC. These motors are manufactured under most stringent quality control norms for IIC atmosphere and are duly tested at ERTL, Kolkata.
- Standard Motors are designed for foot mounting; other mountings are also available on request.
- Standard Levels of enclosure protection for motor and terminal box is IP55. With IP56,IP65 and IP66 available on request
- All Hazardous area motors (except for Gas Group IIC-available in TOP only) have terminal box on the RHS as standard. Top terminal box can be offered on request.
- Standard Paint shade is anti corrosive epoxy light grey 631 as per IS-5, others are also available on request
- The flame proof motors manufactured by CG are suitable for Temperature Class T4 as per IS 6381
Following accessories can be offered on request.- Thermistor
- Space Heater
- Insulated Bearing ( Frame IEC 200 and above)
- Roller Bearing (Frame IEC 225 and above)
- Encoder Mounting arrangement
- MS/FRP Canopy
- Double Compression Cable Glands
Range 0.37 kW to 325 kW Frame IEC 80 to 355 in cast iron Mounting Foot / Flange / Face Pole 2 to 8 Other on request Frequncy 50 or 60 Hz Ambient -20 to + 65 ° C Others on request Protection IP 55 Other on request Feature Complying to BASEEFA/ATEX CE & ERTL/DGMS/DGFASLI Suitable for Gas Group I,IIA,IIB and IIC
