Aluminium enclosure motors - Safe area
Low Voltage Motors
Aluminium enclosure motors - Safe area

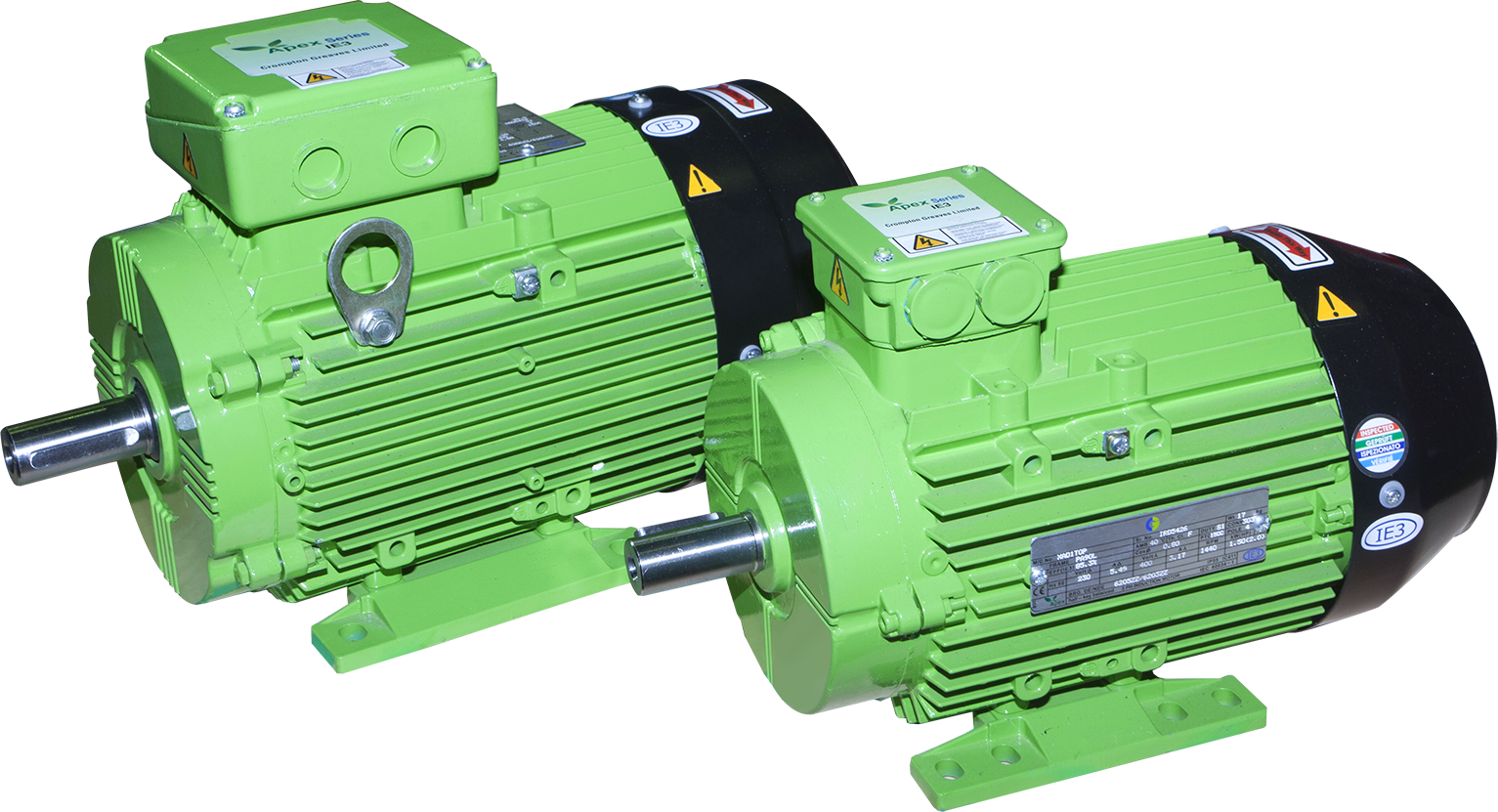

GD Series aluminum motor range covers product with output as little as 0.18kw to 11kw in frame sizes IEC63 to 160, GD series have Multi mount facility, by simply changing the position of feet , the user is able to obtain right, left or top mounted terminal box position and by changing the standard end shield user can change it for flange or face version.
Some of the benefits of aluminium over cast iron include high resistance to corrosion and atmospheric attack (except chlorine, sulphuric acid) and the fact that aluminium is approximately one third the weight of cast iron.
GD series also available with IE3 and IE4 efficiency.
- Standard Motors are designed for foot mounting; other mountings are also available on request
- Standard Levels of enclosure protection for motor and terminal box is IP55. With IP56,IP65 and IP66 available on request
- All motors have terminal box on the top as standard. RHS/LHS terminal box can be converted simply by changing the detachable foot position..
- Standard Paint shade is RAL 7034 Yellow Grey, others are also available on request
- All motors of standard design are provided with Class F insulation with temperature rise limited to Class `B'
Following accessories can be offered on request.
- Thermistor
- Encoder Mounting arrangement
- MS Canopy
- Double Compression Cable Glands
- Brake arrangement
Range
0.18 kW to 15 kW
Frame
IEC 63 to 160 in Aluminum
Mounting
Foot/Flange/Face
Pole
2 to 8 Other on request
Frequency
50 or 60 Hz
Ambient
-40 to 50° C other on request
Protection
IP 55 other on request
Feature
CSA,CE approved
