Cast Iron enclosure motors - Safe Area

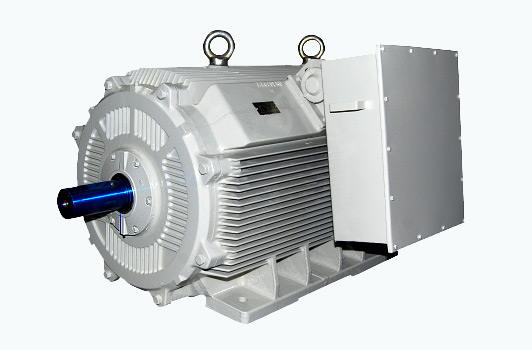

CG LV cast iron motor range covers products with outputs from 0.37 kW to 710 kW in frame sizes 63 to 500. They are suitable for use within a diverse range of applications from pharmaceutical to steel production, from crane to roller table drives, many applications often have adverse operating conditions including repeated starting and occasional overloading; Our LV standard and custom made motors are well suited to these situations and most of the severe application.
- Standard Motors are designed for foot mounting; other mountings are also available on request
- Standard Efficiency is IE2. IE3 and IE4 is also available on request
- Standard Levels of enclosure protection for motor and terminal box is IP55. With IP56,IP65 and IP66 available on request
- Safe area motors have terminal box on the RHS for SCR, and Top for Slip ring as a standard. Other TB position can be offered on request.
- Standard paint shade is RAL7034 Yellow Grey, others are also available on request
- Following accessories can be offered on request.
- Thermistor
- Space Heater
- Resistance Temperature Detector
- Bearing Temperature Detectors
- Insulated Bearing ( Frame IEC 200 and above)
- Roller Bearing ( Frame IEC 225 and above)
- External Blowers
- Fabricated Terminal Box
- Encoder Mounting arrangement
- MS Canopy
- Double Compression Cable Glands
Range
0.37 kW to 710 kW
Frame
IEC 80 to 500 in cast iron
Mounting
Foot/Flange/Face
Pole
2 to 8 Others on request
Frequency
50 or 60 Hz
Ambient
-40 to 65 ° C Others on request
Protection
IP 55 Others on request
Feature
Complying to all international standards
