Auxiliary converter

Propulsion & Control Systemsa

Auxiliary Converter

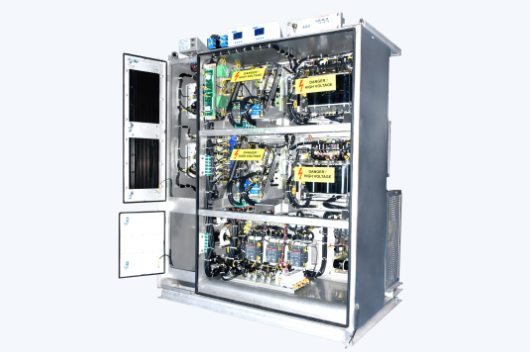

IGBT Auxiliary Converter is designed for 25 kV AC electric locomotive of 6000 HP for goods and passenger Locomotives.

- Input: 0 to 1800 Vdc,
- Output – 1: 415Vac (L-L), 3Ph, 50Hz, 40kVA
- Output – 2: 125Vdc, 40kW
- Output – 3: 110Vdc 3kw Battery charger
- Forced Air cooled
- Redundancy – 100% in 8 Car operation
- Modular and standardized design
Communication based on TCN standard.

- Input : 1000Vac,1Ph,50Hz
- Output: 0 to 415Vac,130kVA –BOX-1
  - 0 to 415Vac, 130kVA- BOX-2
  - 110VDC, 12kW (Battery Charger)-BOX-2
- DC Link Voltage 670V
- Supplies Power to the Auxiliaries in Locomotive
- Modular Design, Forced Air Cooling
- Redundancy
